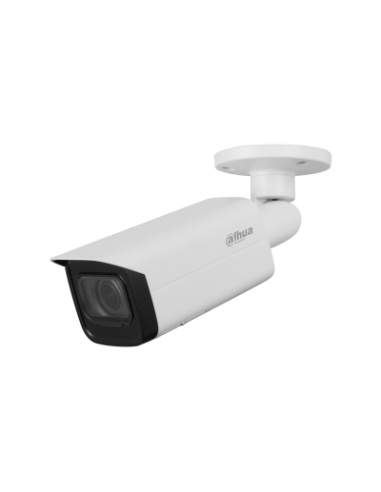

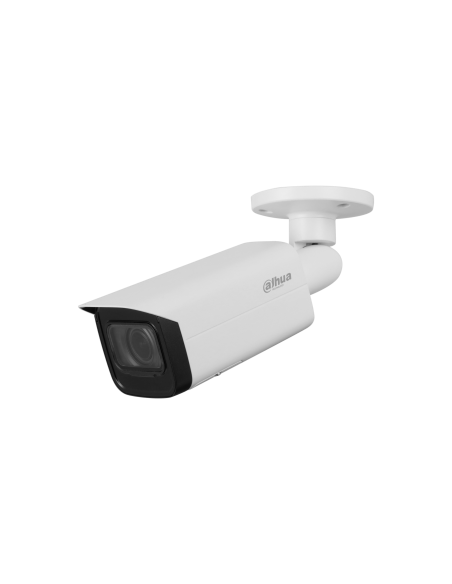

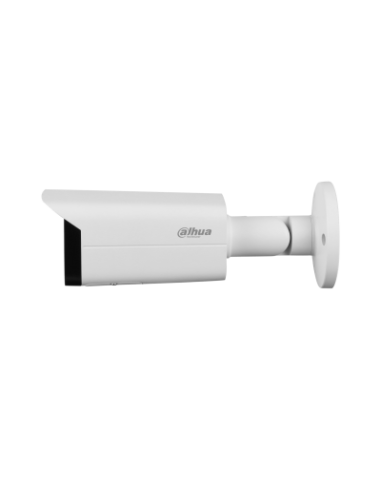

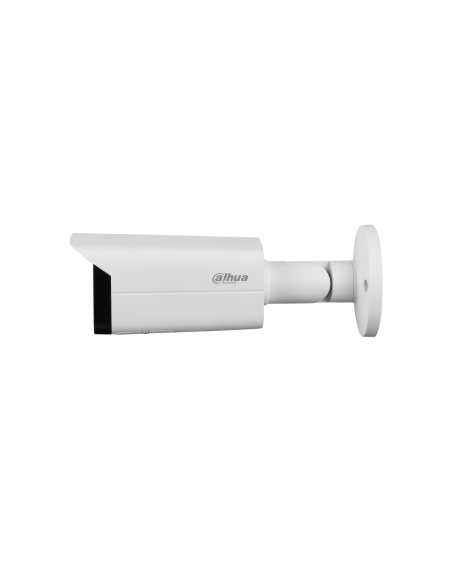

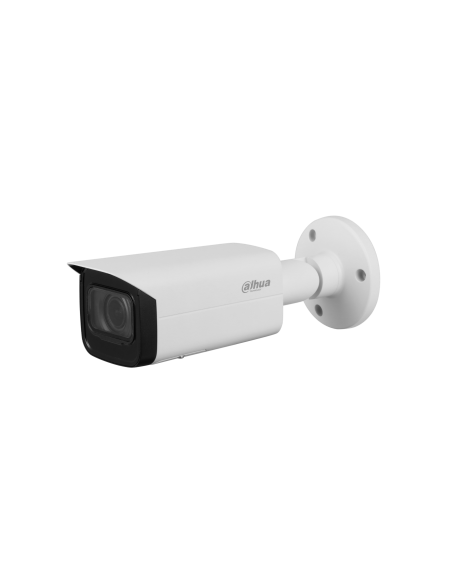

CAMARA IP DAHUA IPC-HFW2431TP BALA 4MP 2.7-13.5MM

Camera

Image Sensor

1/3? 4Megapixel progressive CMOS

Effective Pixels

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s?1/100000 s

Min. Illumination

0.008 [email protected]

S/N Ratio

>56 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°?360°
Tilt: 0°?90°
Rotation: 0°?360°

Lens

Lens Type

Motorized vari-focal

Mount Type

f14

Focal Length

2.7 mm?13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 104°?27°
Vertical: 55°?15°
Diagonal: 124°?31°

Iris Type

Fixed

Close Focus Distance

0.8 m?0.8 m (2.62 ft?2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64 m

(209.97 ft)

25.6 m

(83.99 ft)

12.8 m

(41.99 ft)

6.4 m

(21.00 ft)

T

220 m

(721.78 ft)

88 m

(288.71 ft)

44 m

(144.36 ft)

22 m

(72.18 ft)

Smart Event

IVS

Tripwire intrusion

Video

Video Compression

H.265 H.264 H.264B MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

2688 × 1520 (1 fps-20 fps)

2560 × 1440 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520) 2560 × 1440 (2560 × 1440) 2304 × 1296 (2304 × 1296) 1080p (1920 × 1080) 1.3M (1280 × 960) 720p (1280 × 720) D1 (704 × 576/704 × 480) VGA (640 ×480) CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps?6144 kbps

H.265: 12 kbps?6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card SD card full SD card error network disconnection IP conflict motion detection video tampering tripwire intrusion illegal access voltage detection safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption firmware encryption configuration encryption Digest WSSE account lockout security logs IP/MAC filtering generation and importing of X.509 certification syslog HTTPS 802.1x trusted boot trusted execution trusted upgrade

Protocol

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T) CGI P2P Milestone Genetec

User/Host

20

Storage

FTP Micro SD card (support max. 256 G) NAS SFTP

Browser

IE
Chrome
Firefox

Management Software

Smart PSS DSS DMSS

Mobile Phone

IOS Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 9.6W

Environment

Operating Conditions

-30°C to +60°C (-22°F to +140°F)/less than = 95% RH

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67IK10

Structure

Casing

Metal

Dimensions

244.1 mm × F90.4 mm (9.61” × F3.26”)

Net Weight

0.86 kg (1.90 lb)

Gross Weight

1.10 kg (2.43 lb)
