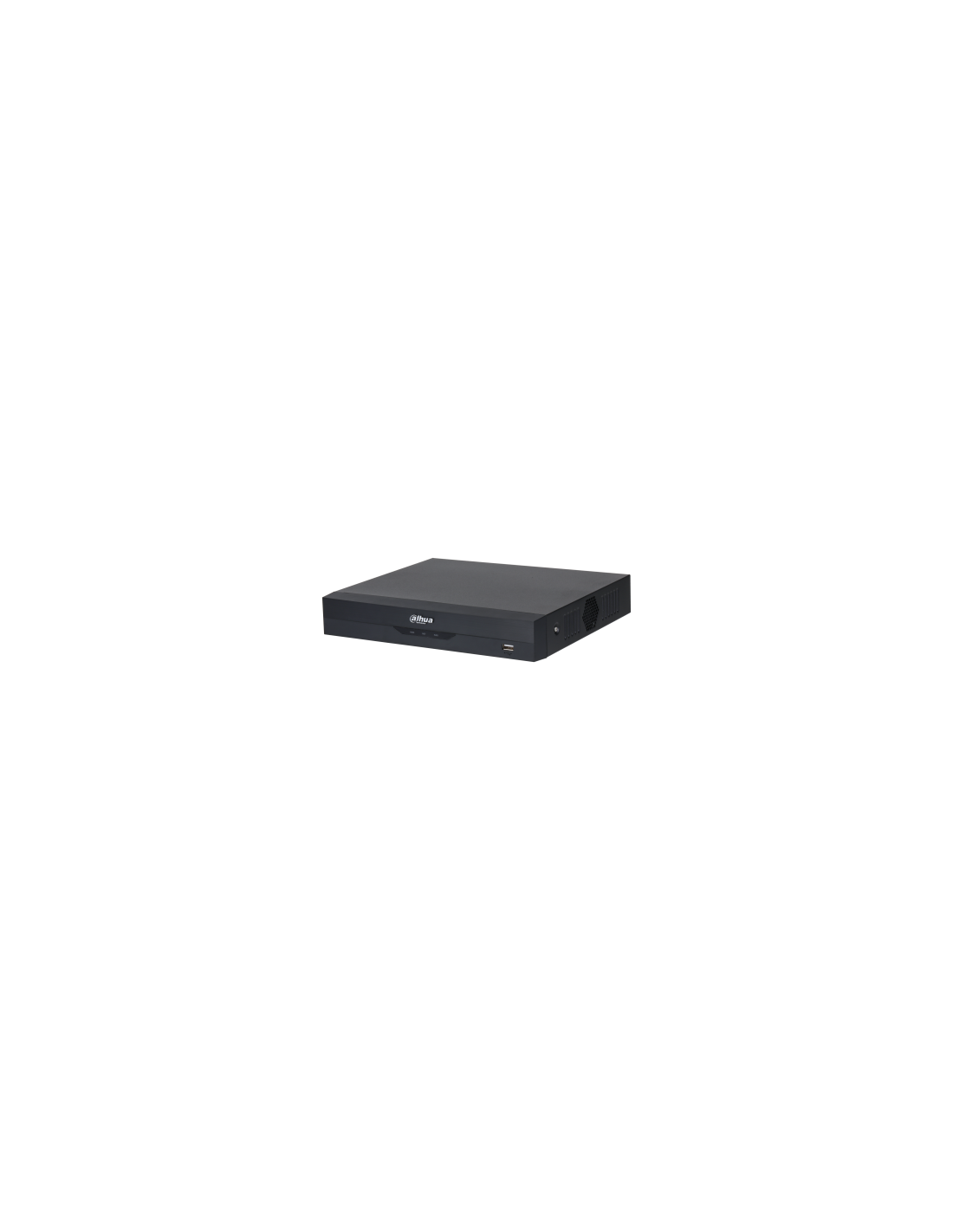

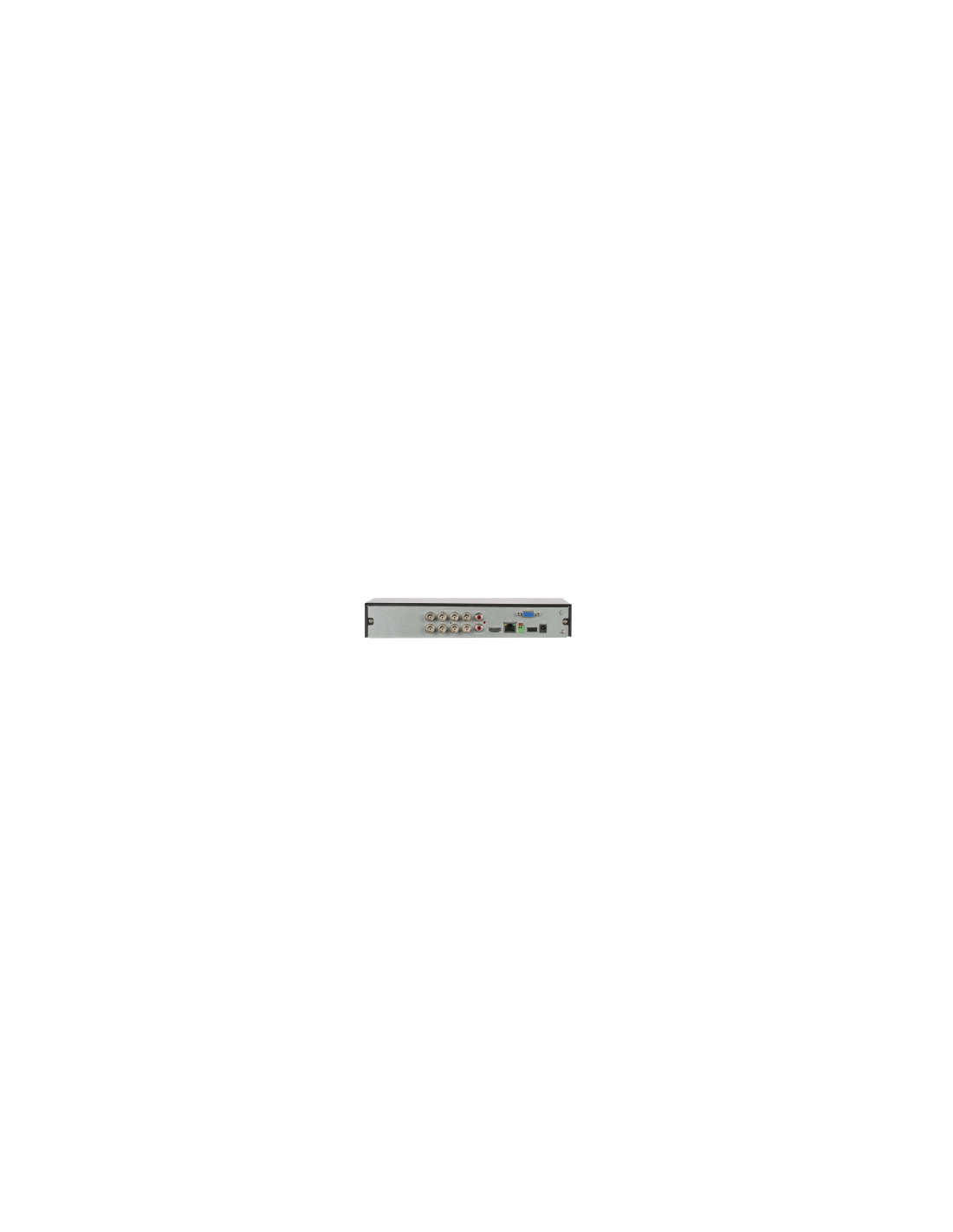

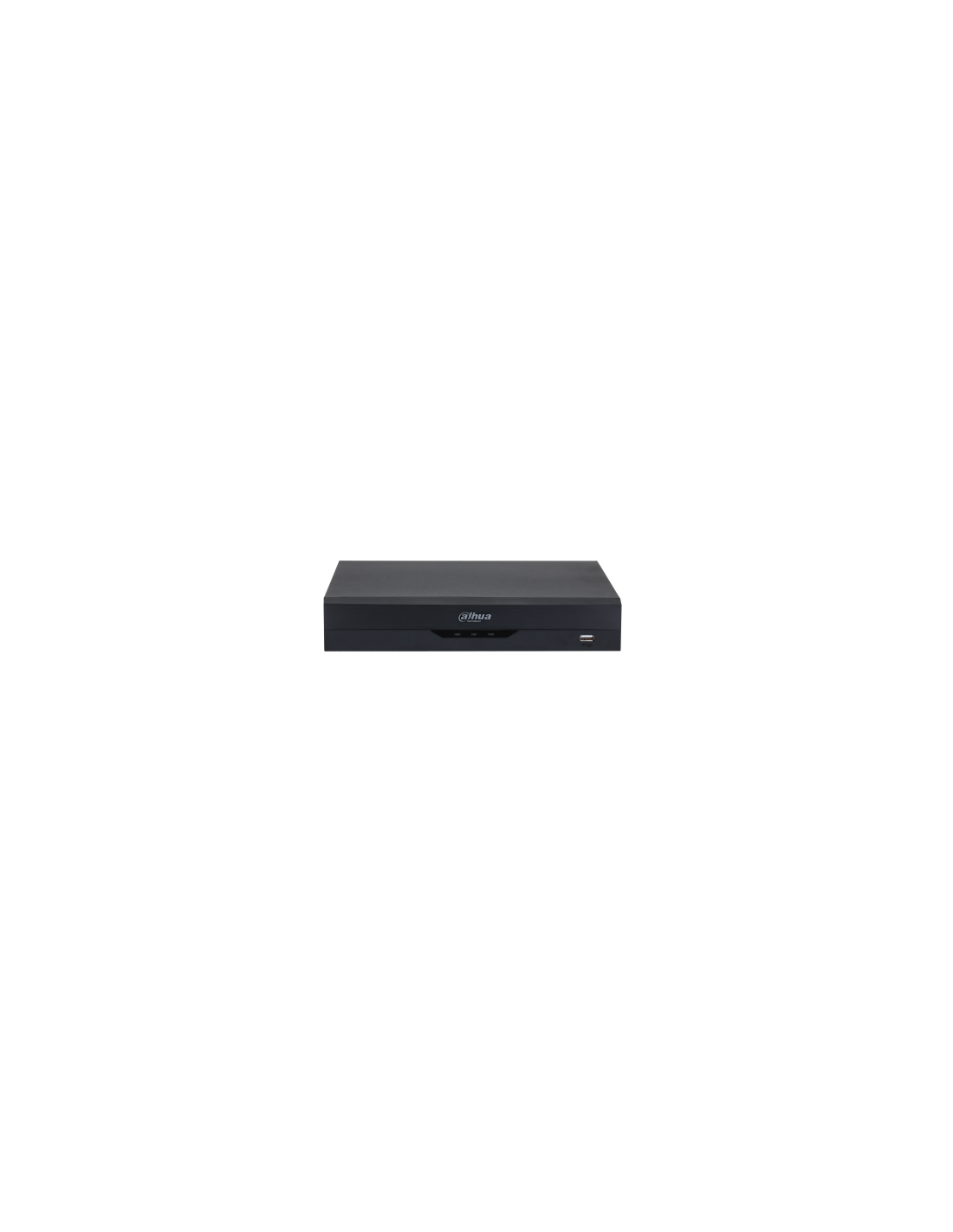

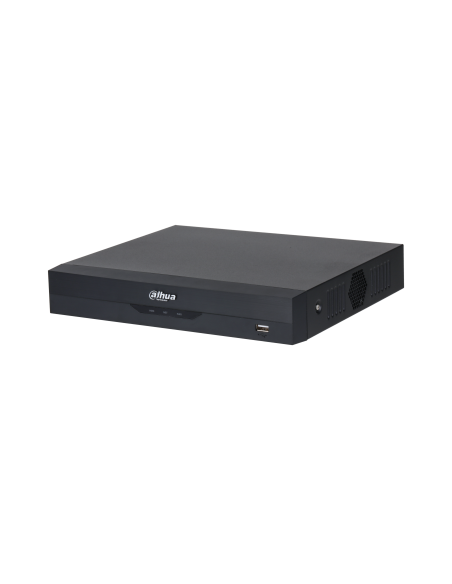

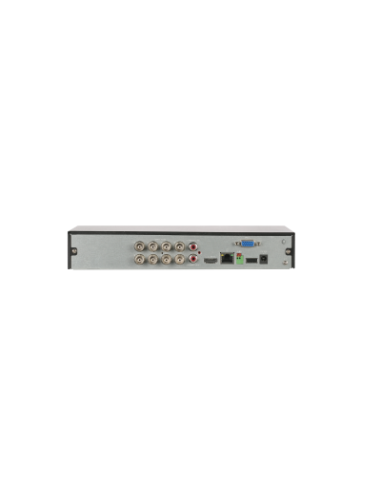

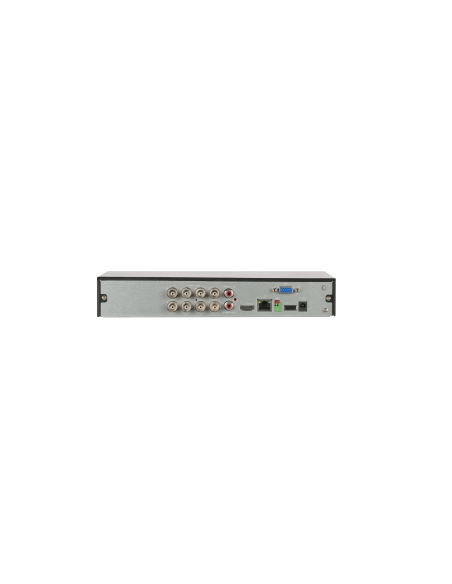

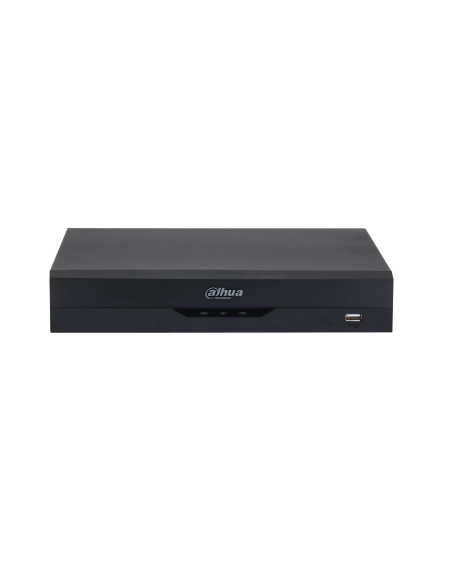

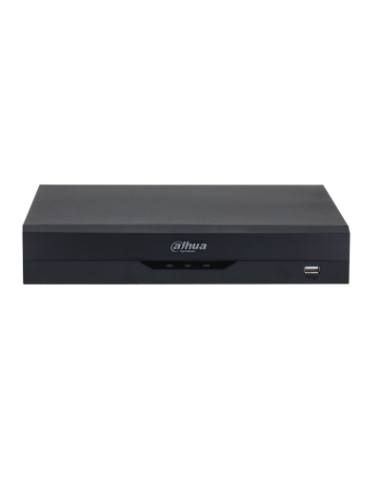

VIDEOGRABADOR POC DAHUA XVR5108HS 8CH 2HDD

No incluye Disco Duro

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS rules for each channel

General Model: 4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 8 face images/s each channel)

Face Recognition

Face Database Capacity

Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.

2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps

IP Camera Input

Up to 12 channels of IPC access

4 IP channels by default + 8 channels (analog channels are converted to IP channels)

incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

*After IP extension is enabled, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Main stream:

5MP Mode: 4-ch 5MP@(1-6fps) other channels 5M-N@(1-12fps)

5M-N Mode:

All channel 5M-N@(1?12fps)4M-N,1080p@(1?15fps) 1080N, 720p, 960H, D1,CIF@(1?25/30fps)

Sub stream: D1, CIF@(1?15fps)

Dual-stream

Yes

Video Bit Rate

32 kbps?6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16

Third-party Camera Access

ONVIF Panasonic Sony Axis Arecont Samsung

Compression Standard

Video Compression

AI Coding Smart H.265+ H.265 Smart H.264+ H.264

Audio Compression

G.711a G.711u PCM

Network

Network Protocol

HTTP HTTPS TCP/IP IPv4 IPv6 RTSP UDP NTP DHCP DNS SMTP UPnP IP Filter FTP DDNS Alarm Server P2P Auto Registration IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS Android

Interoperability

ONVIF 22.12(Profile T Profile S Profile G) CGI SDK

Browser

Chrome Firefox IE

Network Mode

Single-address mode

Recording Playback

Record Mode

General motion detection intelligent alarm POS

Recording Playback

1/4/9
It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode.

Backup Method

USB device and network

Playback Mode

Instant playback general playback event playback tag playback smart playback (face and motion detection)

Alarm

General Alarm

Motion detection alarm box camera external alarm network alarm PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space network disconnection IP conflict MAC conflict) video loss video tampering camera offline

Intelligent Alarm

Face detection face recognition perimeter protection

Alarm Linkage

Record snapshot (panoramic) IPC external alarm output audio buzzer log, preset email

Ports

Audio Input

1-channel RCA
8-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

1 SSD:1TB(replaceable with 256 GB or 512 GB)

Stores for 11 days under default settings.

RS-485

1 port, for PTZ control

USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 2 A

Power Consumption

<7 W (with SSD)

Net Weight

0.97 kg (2.14 lb)

Gross Weight

1.39 kg (3.07 lb)

Product Dimensions

260.0 mm × 237.9 mm × 47.6 mm (10.24’’ × 9.37’’ × 1.87’’) (W × D × H)

Packaging Dimensions

333.0 mm × 89.0 mm × 315.0 mm (13.12’’ × 3.51’’ × 12.41’’) (W × D × H)

Operating Temperature

?10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

?20 °C to +60 °C (?4 °F to +140 °F)

Operating Humidity

=93% (RH)

Installation

Rack or desktop

Certifications

CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035
