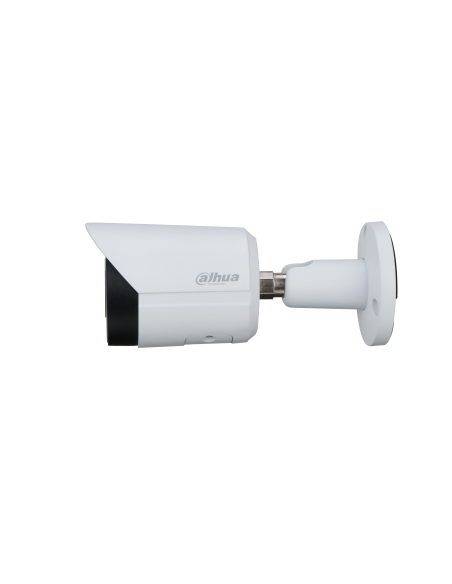

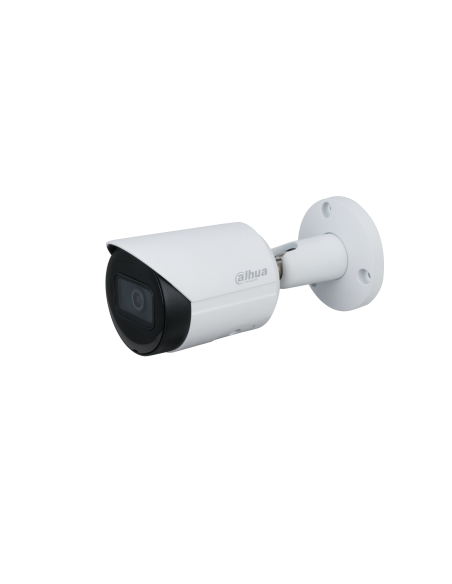

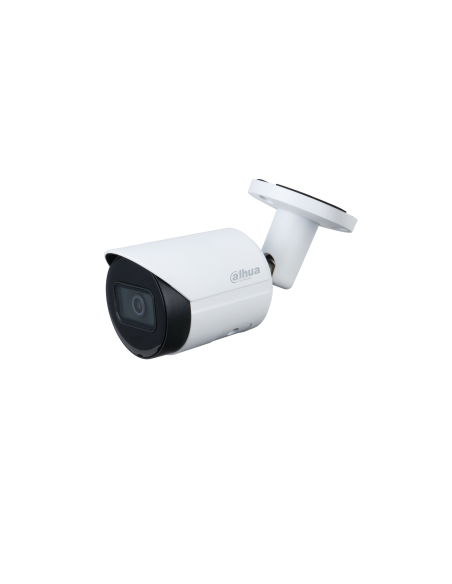

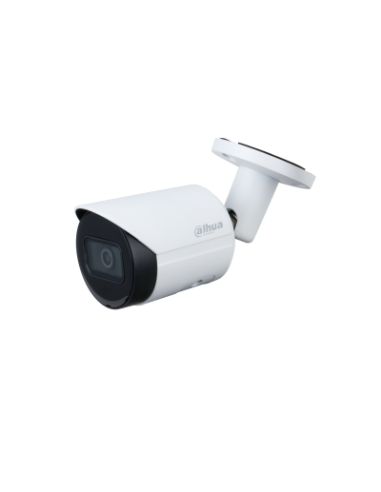

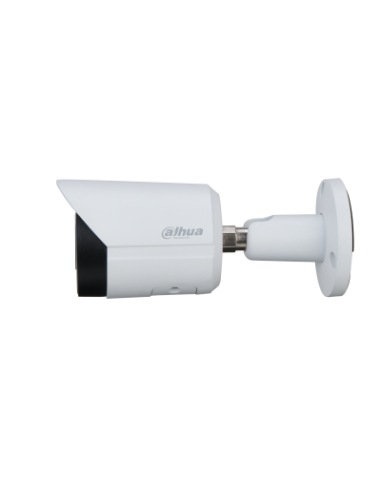

CAMARA IP DAHUA IPC-HFW2230SP BALA 2MP 2.8MM POE

Camera

Image Sensor

1/2.8” CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s?1/100,000 s

Min. Illumination

0.005 [email protected] (Color, 30 IRE)

0.0005 [email protected] (B/W, 30 IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°?360°
Tilt: 0°?90°
Rotation: 0°?360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm 3.6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6

Field of View

2.8 mm: Horizontal: 107° Vertical: 56° Diagonal: 127°
3.6 mm: Horizontal: 88° Vertical: 44° Diagonal: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m (144.03 ft)

17.5 m (57.41 ft)

8.8 m

(28.87 ft)

4.4 m

(14.44 ft)

3.6 mm

58.9 m (193.24 ft)

23.6 m (77.43 ft)

11.8 m (38.71 ft)

5.9 m

(19.36 ft)

Smart Event

IVS

Tripwire intrusion

Video

Video Compression

H.265 H.264 H.264B MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+ Smart H.264+

Video Frame Rate

Main stream:
1920 × 1080@1?25/30 fps
Sub stream:
704 × 576@1?25 fps
704 × 480@1?30 fps
*The values above are the max. frame rates of each stream for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

2 streams

Resolution

1080p (1920 × 1080) 1.3M (1280 × 960) 720p (1280 × 720) D1 (704 × 576/704 × 480) VGA (640 × 480) CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps?6144 kbps
H.265: 12 kbps?6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto natural street lamp outdoor manual regional custom

Gain Control

Auto manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card SD card full SD card error network disconnection IP conflict illegal access motion detection video tampering tripwire intrusion voltage detection security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption firmware encryption configuration encryption Digest WSSE account lockout security logs IP/MAC filtering generation and importing of X.509 certification syslog HTTPS 802.1x trusted boot trusted execution trusted upgrade

Network Protocol

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T) CGI P2P Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP SFTP Micro SD card (support max. 256 G) NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS DSS DMSS

Mobile Client

IOS Android

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

Basic: 1.8 W (12 V DC) 2.5 W (PoE)

Max. (ICR H.265 max. resolution main stream IR intensity DWDR IVS): 3.9 W (12 V DC) 4.7 W (PoE)

Environment

Operating Temperature

?40 °C to +60 °C (?40 °F to +140 °F)

Operating Humidity

= 95%

Storage Temperature

?40 °C to +60 °C (?40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

166.2 mm × F70 mm (6.54” × F2.76”)

Net Weight

0.48 kg (1.06 lb)

Gross Weight

0.57 kg (1.26 lb)
