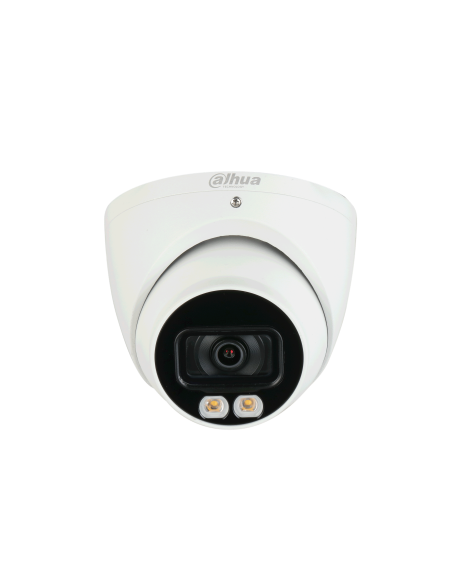

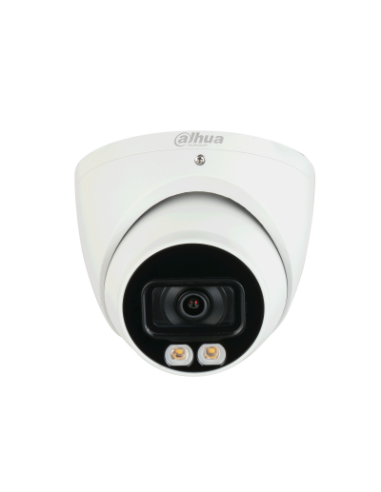

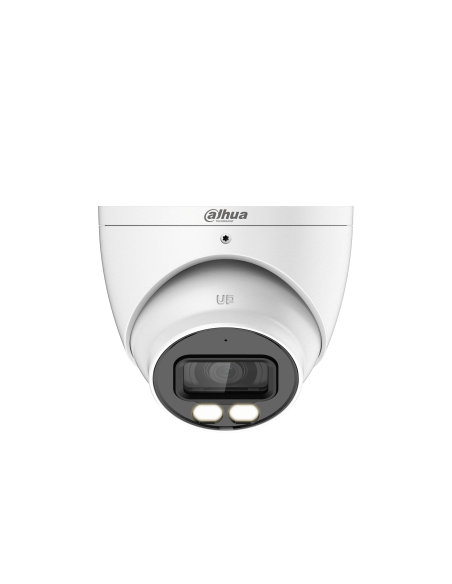

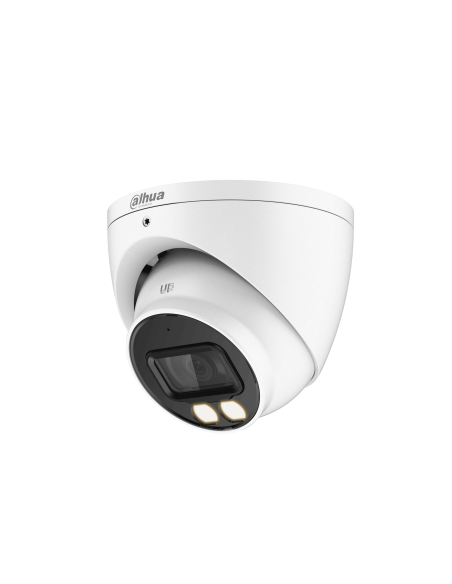

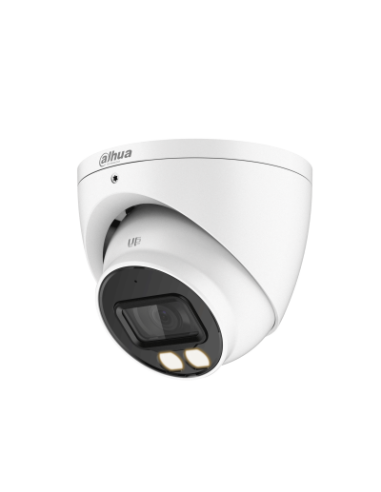

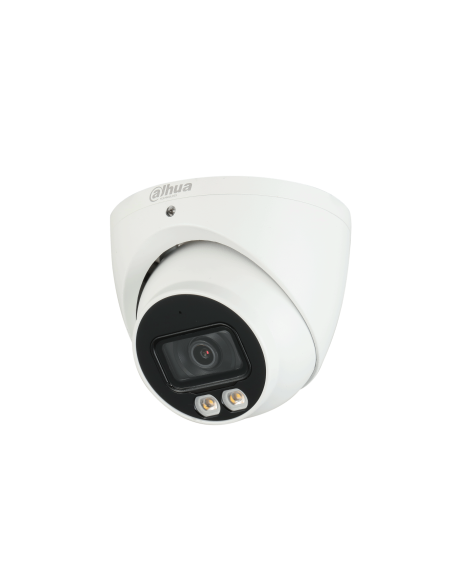

CAMARA POC DAHUA HAC-HDW1239TP DOMO 2MP 2.8MM

Camera

Pixel

2 MP

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s?1/100,000 s
NTSC: 1/30 s?1/100,000 s

Min. Illumination

0.001 [email protected] (Color, 30 IRE)
0.0001 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°?360°
Tilt: 0°?78°
Rotation: 0°?360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 107° V: 56° D: 127°

3.6 mm: H: 86° V: 46° D: 101°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.29 ft)

3.6 mm: 1.1 m (3.61 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

42.2 m

(138.45 ft)

16.9 m

(55.45 ft)

8.4 m

(27.56 ft)

4.2 m

(13.78 ft)

3.6 mm

53.7 m

(176.18 ft)

21.5 m

(70.54 ft)

10.7 m

(35.10 ft)

5.4 m

(17.72 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960 × 576H
NTSC: 960 × 480H

Resolution

1080p (1920 × 1080) 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC HLC WDR

WDR

130 dB

White Balance

Auto Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Smart Illumination

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Illuminator

Smart IR&WL WL Mode IR Mode

Certification

Certifications

CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC (-A)

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 4.0 W (12 VDC, LED on)

Environment

Operating Temperature

?40 °C to +60 °C (?40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

?40 °C to +60 °C (?40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

F106.0 mm × 93.6 mm (F4.17” × 3.69”)

Packaging Dimensions

148 mm × 139 mm × 137 mm (5.83” × 5.47” × 5.39”)

Net Weight

0.46 kg (1.01 lb)

Gross Weight

0.64 kg (1.41 lb)

Installation

Wall mount ceiling mount vertical pole mount
