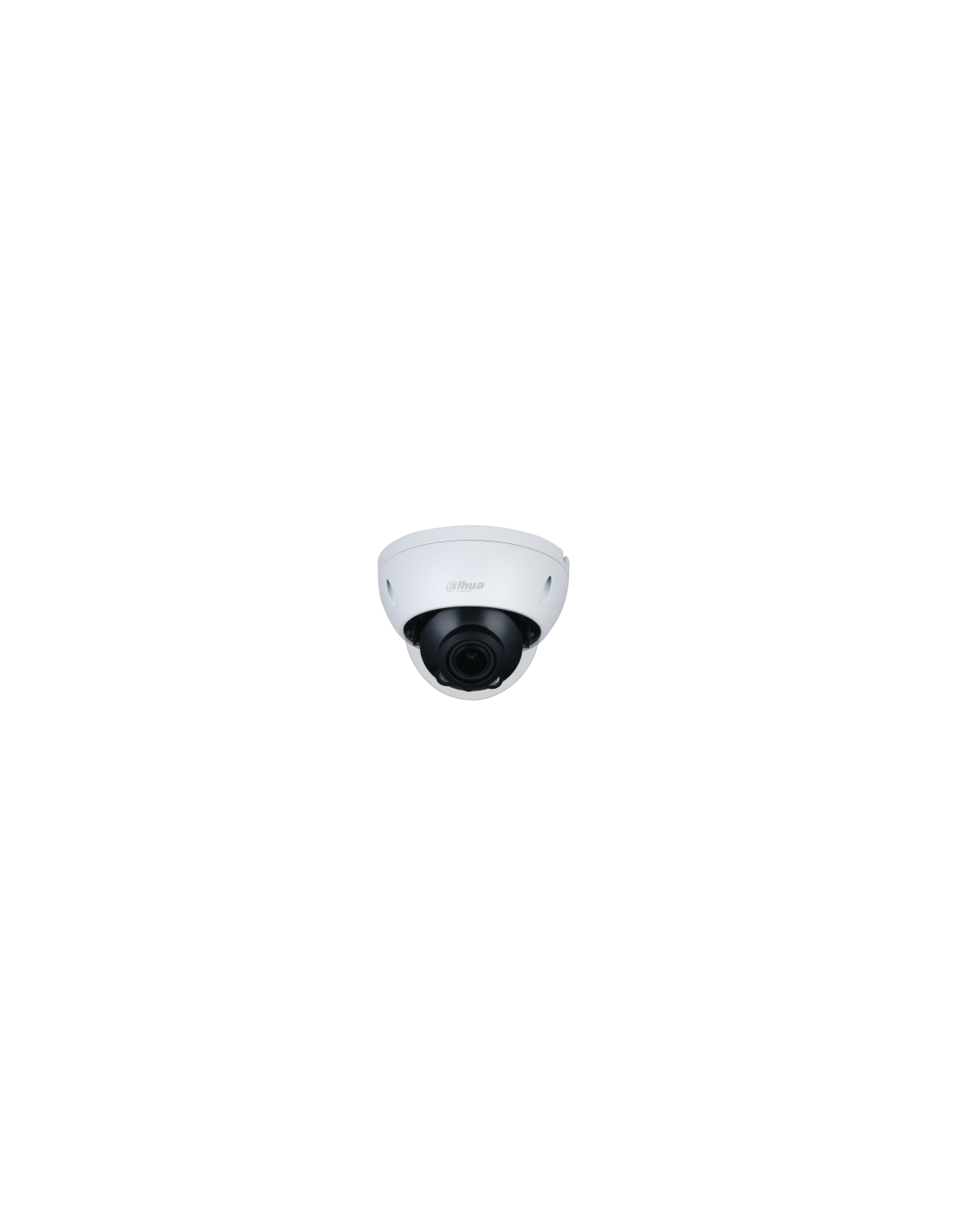

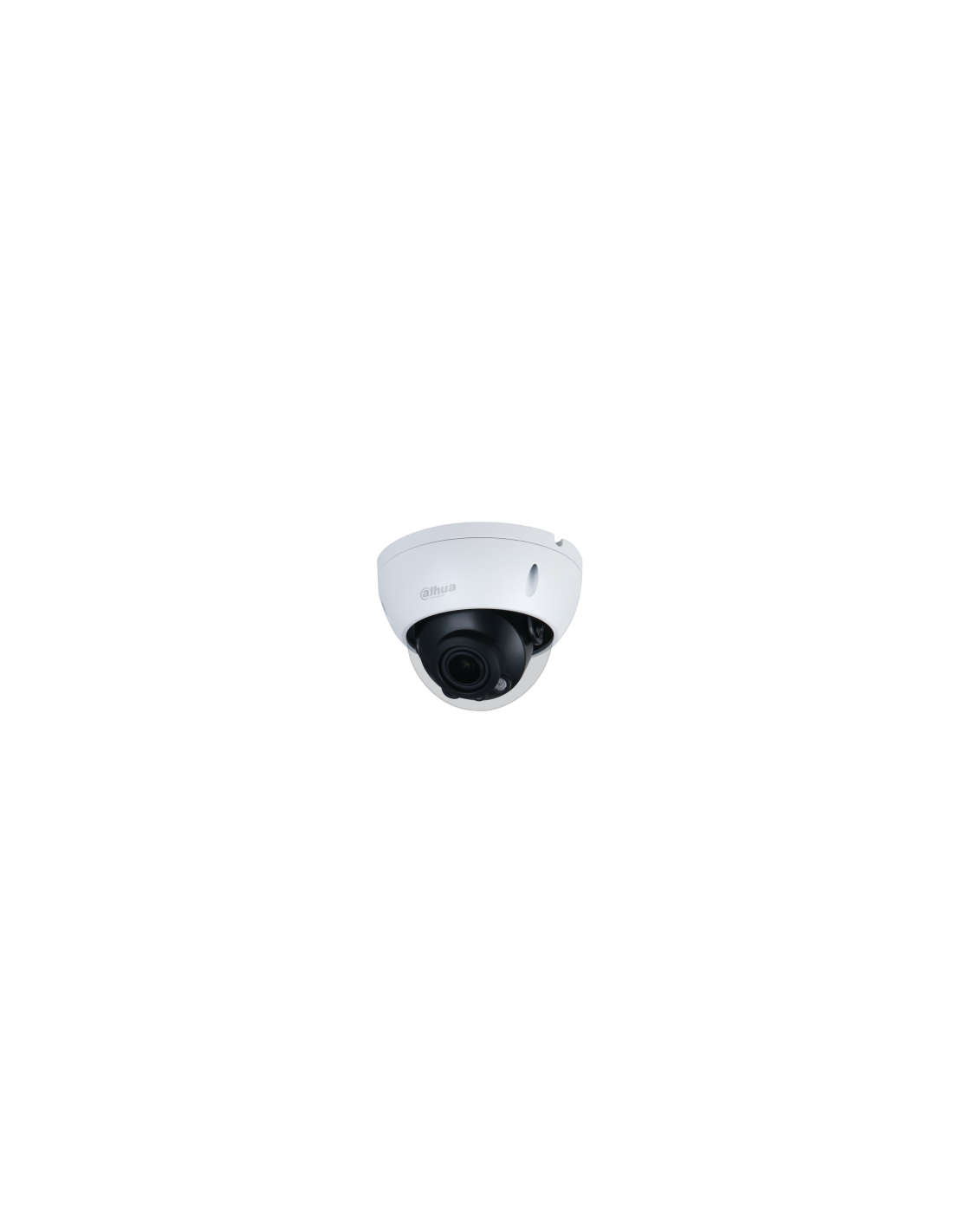

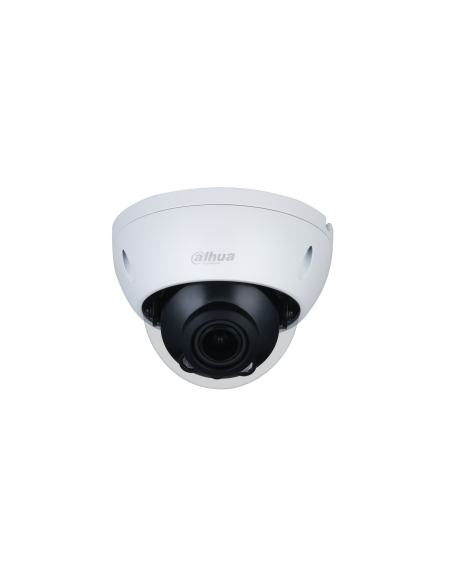

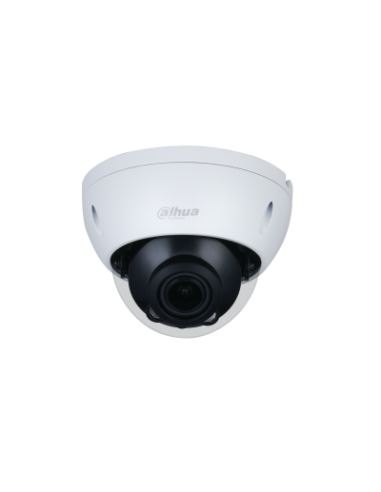

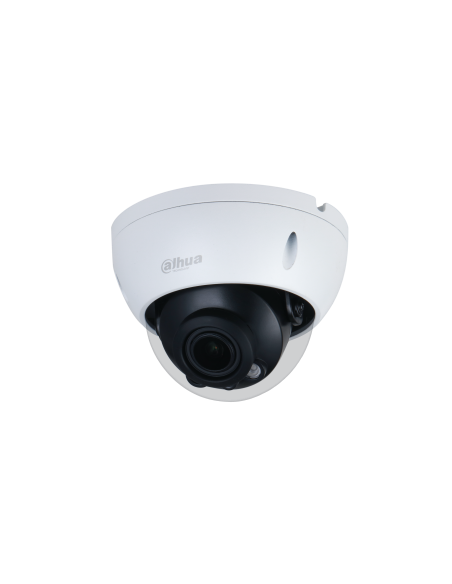

CAMARA POC DAHUA HAC-HDBW1200RP DOMO 2MP 2.7-12MM

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s?1/100000s
NTSC: 1/30s?1/100000s

S/N Ratio

>65dB

Minimum Illumination

0.02Lux/F1.7, 30IRE, 0Lux IR on

Fill Light Working Distance

30 m (98.4 ft)

IR On/Off Control

Auto manual

IR LED Number

2

Pan/Tilt/Rotation Range

Pan: 0°?355°
Tilt: 0°?75°
Rotation: 0°?355°

Lens

Lens Type

Motorized vari-focal

Auto Focus

N/A

Mount Type

f14

Focal Length

2.7 mm-12 mm

Max. Aperture

F1.7

Field of View

Diagonal: 38°? 125°

Horizontal: 33°?102°

Vertical: 19°? 53°

Iris Type

Fixed iris

Close Focus Distance

1.2 m (3.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7mm

49.7 m (163.1 ft)

19.9 m (65.3 ft)

9.9 m

(32.5 ft)

5 m

(16.4 ft)

12mm

82.8 m (271.7 ft)

33.1 m (108.6 ft)

16.6 m (54.5 ft)

8.3 m

(27.2 ft)

Video

Frame Rate

CVI: 1080P@25/30fps 720P@25/30fps 720P@50/60fps
AHD: 1080P@25/30fps 720P@25/30fps
TVI: 1080P@25/30fps 720P@25/30fps 720P@50/60fps
CVBS: 960H

Resolution

1080P (1920×1080) 720P (1280×720) 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto manual

Gain Control

Auto manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 6.3W (12V DC, IR on)

Environment

Operating Temperature

-30°C to +60°C (-22°F to 140°F)<95% (non-condensation)

Storage Temperature

-30°C to +60°C (-22°F to 140°F)<95% (non-condensation)

Protection Grade

IP67, IK10

Structure

Casing

Plastic dome cover+metal upper casing+metal pedestal

Camera Dimensions

f122.0 mm × 88.9 mm ( f4.80” × 3.50” )

Net Weight

0.44 Kg (0.97 lb)

Gross Weight

0.7 Kg (1.54 lb)
