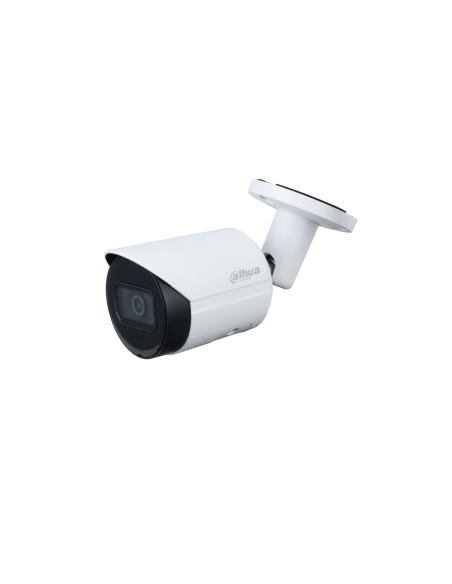

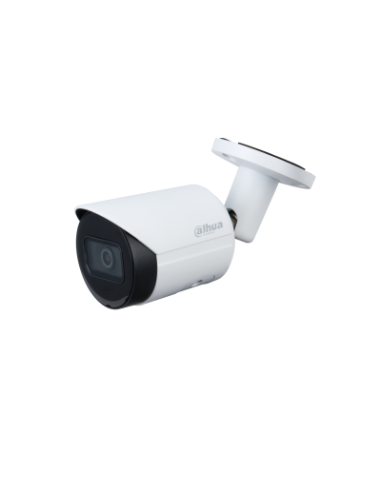

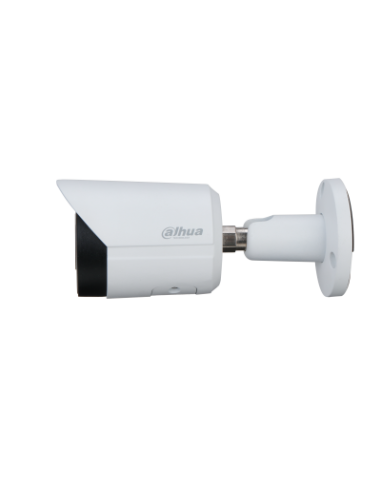

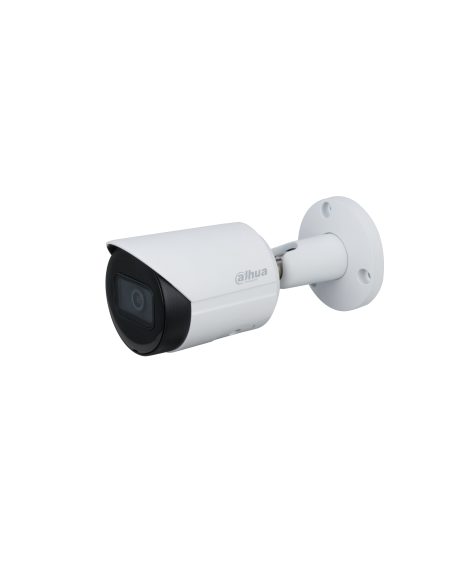

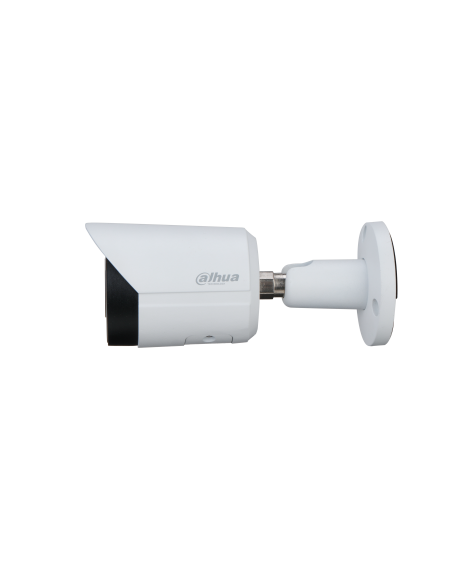

CAMARA IP DAHUA IPC-HFW2431SP BALA 4MP 2.8MM POE

Camera

Image Sensor

1/3? 4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s?1/100000 s

S/N Ratio

> 56 dB

Min. Illumination

0.008 [email protected]

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°?360°
Tilt: 0°?90°
Rotation: 0°?360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6
F1.6

Field of View

2.8 mm:
Horizontal:102.0° × Vertical 55.0° × Diagonal 121.0°

3.6 mm :
Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56 m (183.73 ft)

22.4 m

(73.49 ft)

11.2 m

(36.75 ft)

5.6 m

(18.37 ft)

3.6 mm

80 m (262.47 ft)

32.0 m (104.99 ft)

16.0 m

(52.49 ft)

8.0 m

(26.25 ft)

Smart event

IVS

Tripwire intrusion

Video

Video Compression

H.265 H.264 H.264B MJPEG(only supported

by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

2688 × 1520 (1 fps-20 fps)

2560 × 1440 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520) 2560 × 1440 (2560 × 1440) 2304 × 1296 (2304 × 1296) 1080p (1920 × 1080) 1.3M (1280 × 960) 720p (1280 × 720) D1 (704 × 576/704 × 480) VGA (640 ×480) CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps?6144 kbps
H.265: 12 kbps?6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card SD card full SD card error network disconnection IP conflict illegal access motion detection video tampering tripwire intrusion voltage detection security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption firmware encryption configuration encryption Digest WSSE account lockout security logs IP/MAC filtering generation and importing of X.509 certification syslog HTTPS 802.1x trusted boot trusted execution trusted upgrade

Protocol

IPv4 IPv6 HTTP HTTPS TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE 802.1x Bonjour

Interoperability

ONVIFCGI P2P Milestone Genetec

User/Host

20

Storage

FTP SFTP Micro SD Card (support max. 256 GB) NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS DSS DMSS

Mobile Phone

IOS Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than = 95% RH

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal

Dimensions

166.2 mm × F70 mm (6.54” × F2.76”)

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.57 kg (1.3 lb)
