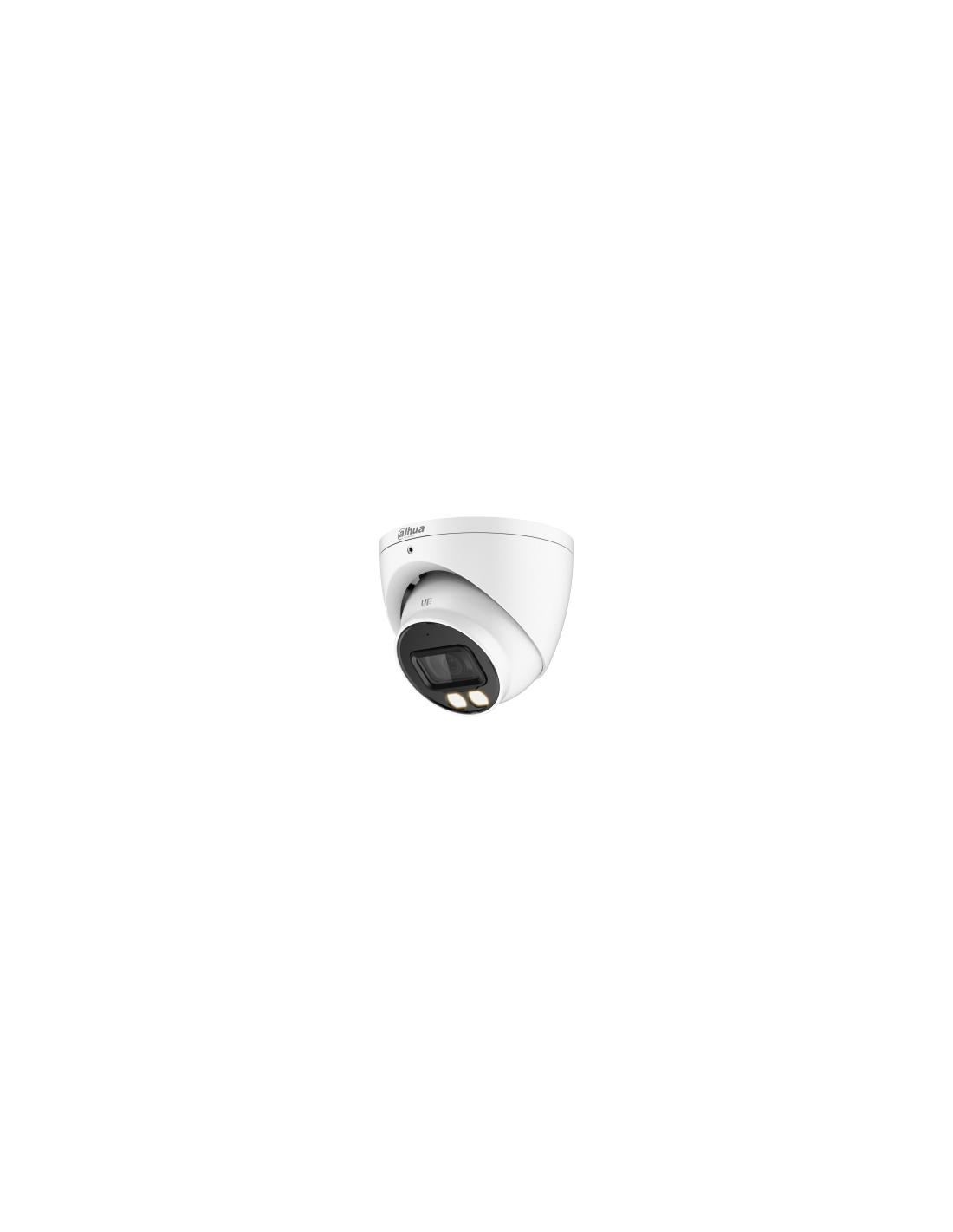

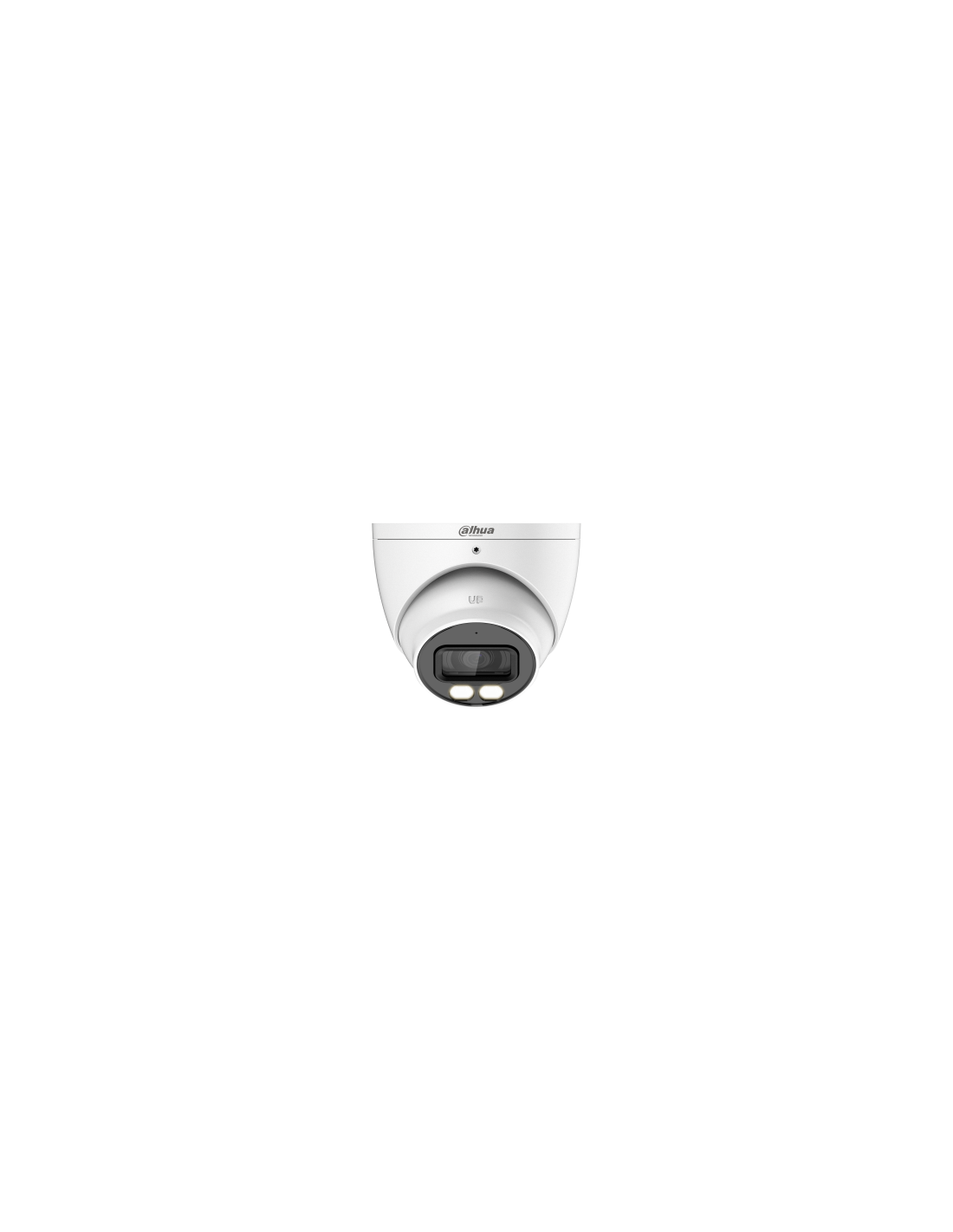

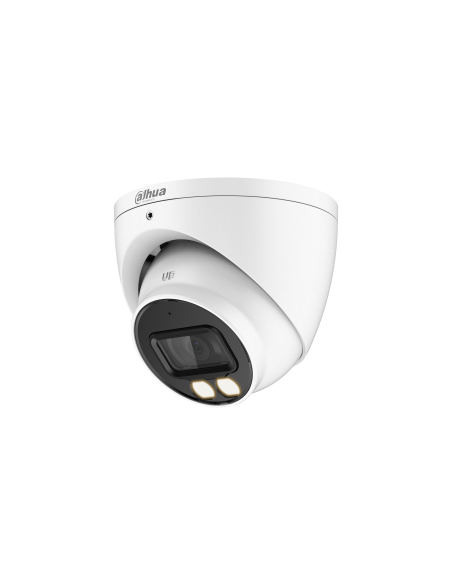

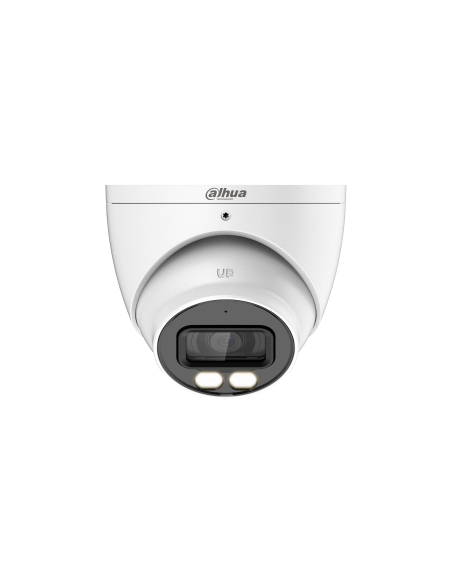

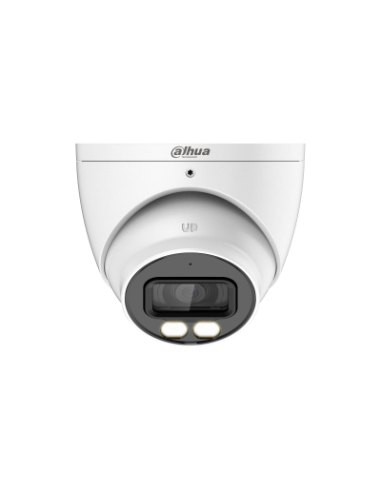

CAMARA POC DAHUA HAC-HDW1509TP DOMO 5MP FULL 2.8

Camera

Pixel

5MP

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s?1/100000 s
NTSC: 1/4 s?1/100000 s

Min. Illumination

0.001 [email protected] (Color, 30 IRE)
0.0001 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto manual

Illuminator Number

2 (IR light)

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°?360°
Tilt: 0°?78°
Rotation: 0°?360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 111° V: 57° D: 131°
3.6 mm: H: 89° V: 47° D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m

(216.54 ft)

26.4 m

(86.61 ft)

13.2 m

(43.31 ft)

6.6 m

(21.65 ft)

3.6 mm

78.0 m

(255.91 ft)

31.2 m

(102.36 ft)

15.6 m

(51.18 ft)

7.8 m

(25.59 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps 4M@25 fps 1080p@25 fps
NTSC: 5M@25 fps 4M@30 fps 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

5M (2880 × 1620)
4M (2560 × 1440)
1080p (1920 × 1080)
960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC HLC WDR HLC-Pro

WDR

120 dB

White Balance

Auto Area white balance

Gain Control

Auto manual

Noise Reduction

3D NR

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Illumination Mode

Smart IR&WL WL Mode IR Mode

Certifications

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 5.7 W (12 VDC, LED on)

Environment

Operating Temperature

?40 °C to +60 °C (?40 °F to 140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

?40 °C to +60 °C (-40 °F to 140 °F)

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

F106.0 mm × 93.6 mm (F4.17” × 3.69”)

Packaging Dimensions

148 mm × 139 mm × 137 mm (5.83” × 5.47” × 5.39”)

Net Weight

0.49 kg (1.08 lb)

Gross Weight

0.66 kg (1.46 lb)

Installation

Wall mount ceiling mount vertical pole mount
