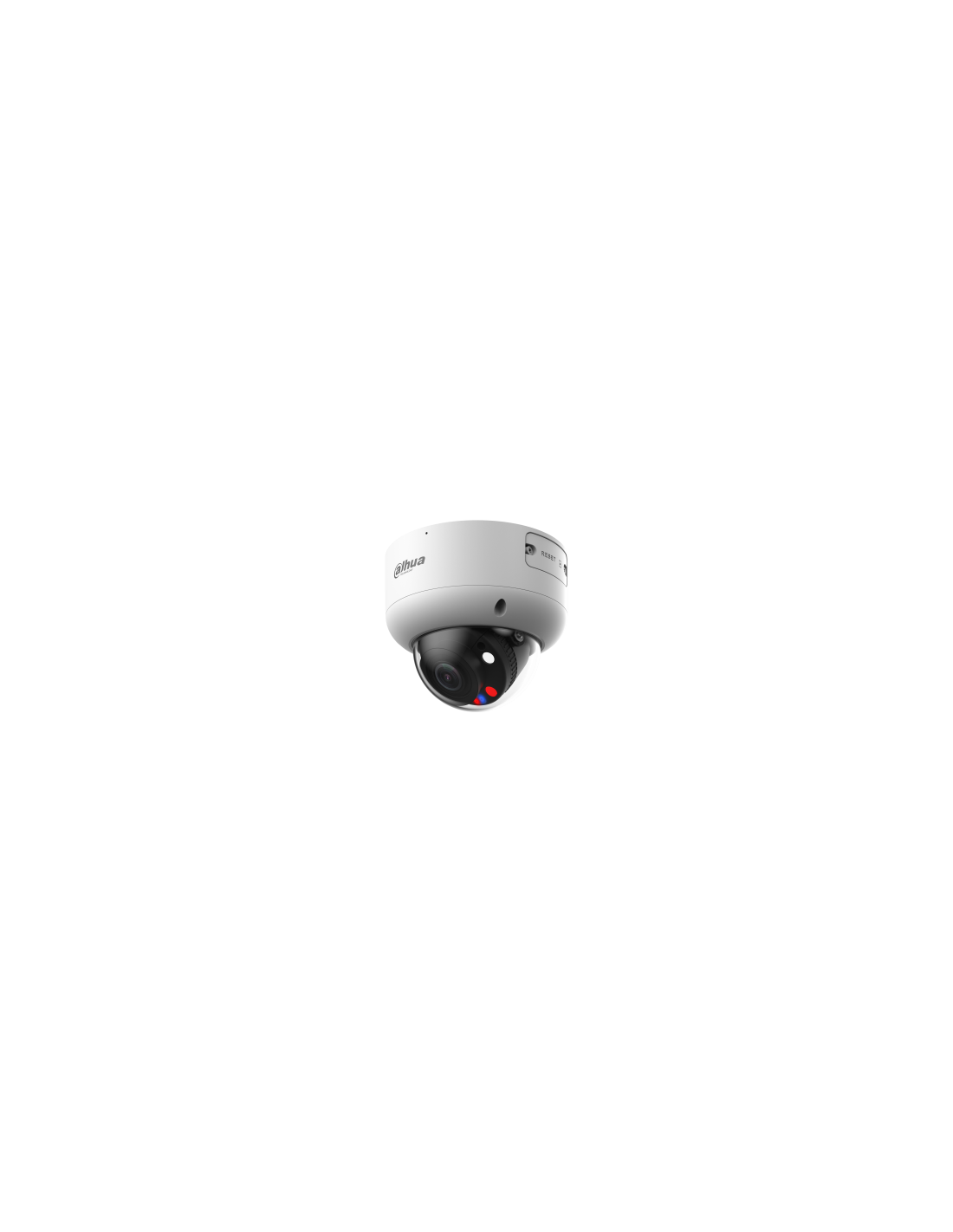

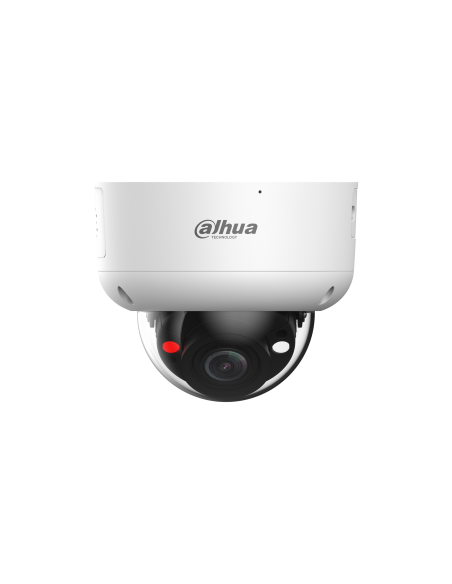

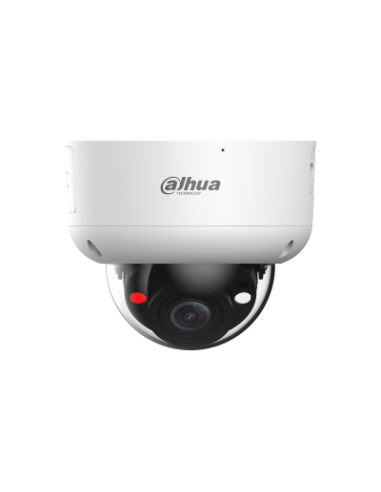

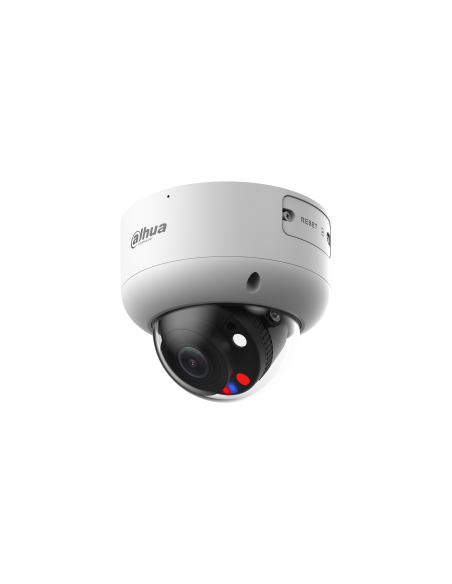

CAMARA IP DAHUA IPC-HDBW3449R1P-ZAS DOMO 4MP POE

Camera

Image Sensor

1/2.7” CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s?1/100,000 s

Min. Illumination

0.003 [email protected] (Color, 30 IRE)

0.0003 [email protected] (B/W, 30 IRE)

0 lux (illuminator on)

S/N Ratio

?56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)

Up to 40 m (131.23 ft) (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)
2 (warm light)

Angle Adjustment

Pan: 0°?360°
Tilt: 0°?90°
Rotation: 0°?360°

Lens

Lens Type

Motorized vari-focal

Mount Type

f16

Focal Length

2.7 mm?13.5 mm

Max. Aperture

F1.0

Field of View

Horizontal: 103°?33°

Vertical: 54°?18°

Diagonal: 124°?38°

Iris Type

Fixed

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

65.2 m (213.91 ft)

26.1 m

(85.63 ft)

13.0 m

(42.65 ft)

6.5 m

(21.33 ft)

T

186.6 m (612.20 ft)

74.6 m

(244.75 ft)

37.3 m

(122.38 ft)

18.7 m

(61.35 ft)

Professional, intelligent

IVS (Perimeter Protection)

Tripwire intrusion (support the classification and accurate detection of vehicle and human)

SMD 4.0

Less false alarm, longer detection distance

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Video

Video Compression

H.265 H.264 H.264H H.264B MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+ Smart H.264+

AI Coding

AI H.265 AI H.264

Video Frame Rate

Main stream: 2688 × 1520@(1 fps?30 fps)
Sub stream: 704 × 576@(1 fps?25 fps)/704 × 480@(1 fps?30 fps)

Third stream:1920 × 1080@(1 fps?30 fps)
*The values above are the max. frame rates of each stream for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

4M (2688 × 1520/2560 × 1440) 3M (2304 × 1296) 1080p (1920 × 1080) 720p (1280 × 720) D1 (704 × 576/704 × 480) CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps?8192 kbps

H.265: 3 kbps?8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto natural street lamp outdoor manual regional custom

Gain Control

Auto manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in Mic

Yes, built-in dual Mic

Built-in speaker

Yes, built-in speaker

Audio Compression

PCM G.711a G.711Mu G.726 G.723

Alarm

Alarm Event

No SD card SD card full SD card error network disconnection IP conflict illegal access motion detection video tampering tripwire intrusion scene changing audio detection voltage detection defocus detection external alarm SMD security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption firmware encryption configuration encryption Digest WSSE account lockout security logs IP/MAC filtering generation and importing of X.509 certification syslog HTTPS 802.1x trusted boot trusted execution trusted upgrade

Protocol

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P

Interoperability

ONVIF (Profile SProfile GProfile T) CGI

User/Host

20 (Total bandwidth: 72 M)

Storage

FTP SFTP Micro SD card (support max. 256 G) NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

SmartPSS Lite DSS DMSS

Mobile Phone

iOS Android

Certification

Certification

CE-LVD: EN 62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3V?5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 3.3 W (12 VDC) 4.7 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.7 W (12 VDC) 9 W (PoE)

Environment

Operating Conditions

?30 °C to +60 °C (?22 °F to +140 °F)/Less than 95% RH

Storage Conditions

?40 °C to +60 °C (?40 °F to +140 °F)

Protection Grade

IP67, IK10

Structure

Casing

Metal

Dimensions

105 mm × F126.0 mm (4.13” × F4.96” )

Net Weight

0.73 kg (1.61 lb)

Gross Weight

0.9 kg (1.98 lb)
