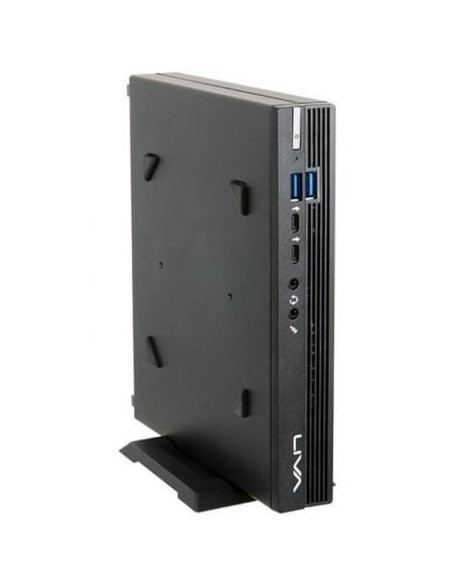

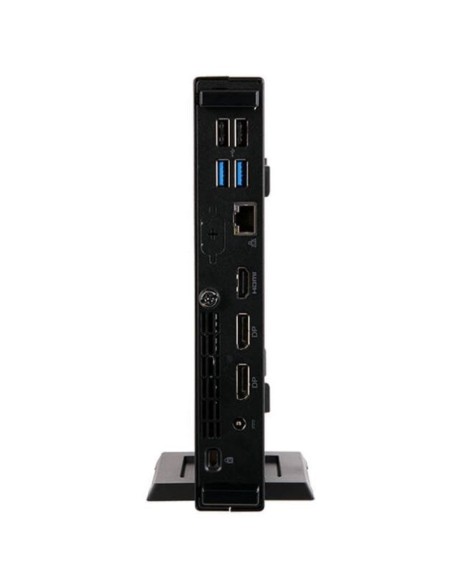

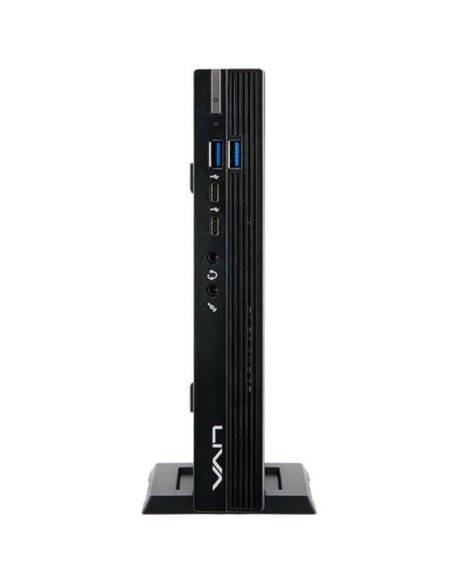

PC MINI ECS LIVA ONE H610 65W NO CPU-DISC-MEMORIA

PLATAFORMA
Intel® 12th & 13th Gen Processors with LGA1700 Socket
TDP 35W & 65W
MEMORIA
Support 2 x SO-DIMM DDR4 3200MHz, up to 64GB
ALMACENAMIENTO
1 × 2.5” SATA3 HDD or SSD
1 x M.2 2280 SATA/PCIe NVME x 4 Gen3 SSD
AUDIO
1 x Combo Jack
1 x MIC-IN
CONEXIÓN REDES
1 X 2.5Gbps Ethernet LAN
USB
2 x USB 3.2 Gen1ࡧ (FRONT I/O)
2 x USB 3.2 Gen 2ࡧ Type C Ports (FRONT I/O)
2 x USB 2.0(REAR I/O)
2 x USB 3.2 Gen 1ࡧ(REAR I/O)
SALIDA DE VIDEO
1 x HDMI Port
2 x DisplayPort
1 x VGA Port (D-Sub Optional)
? * Max. 3 Video Outputs
INALÁMBRICO
1 x M.2 2230 WLAN 802.11ax
ALIMENTACIÓN
TDP 35W & 65W: 19V/6.32A, 120W
1 x Power Button
1 x DC-in
DIMENSIONS (MM)
205 × 176 x 33 mm
S0 SOPORTADO
Windows 10 & Windows 11
OBSERVACIÓN
1 x TPM Onboard (Optional)
1 x Internal Speaker (Optional)
1 x RS232/VGA share same I/O port (Optional)
