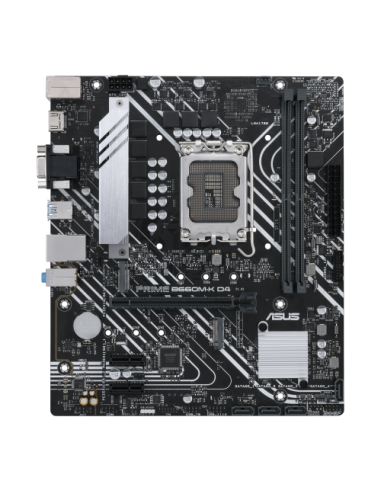

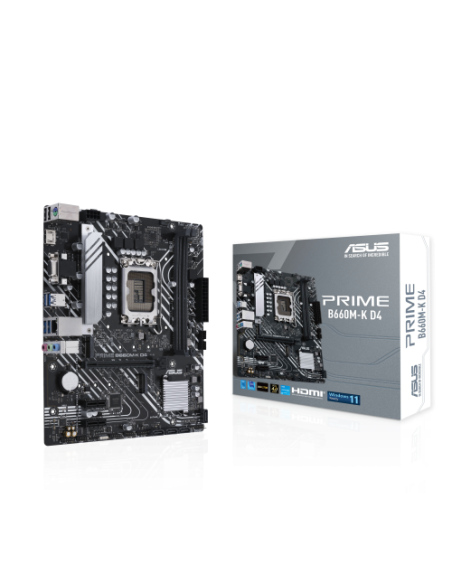

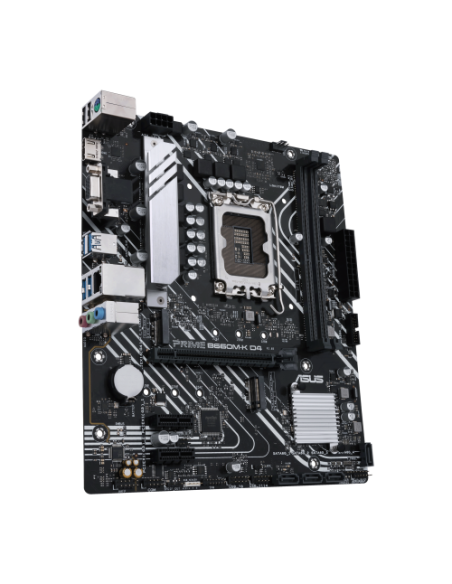

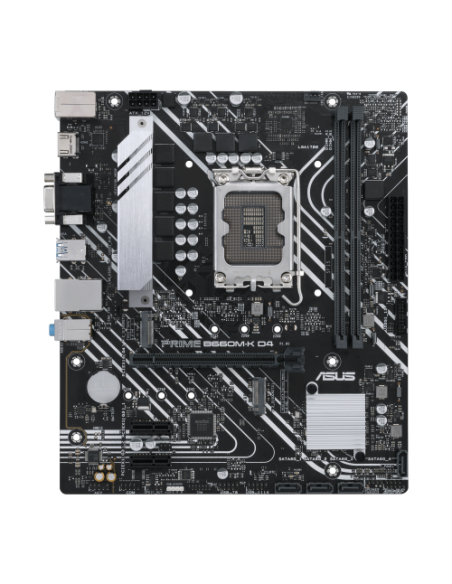

PLACA BASE 1700 ASUS PRIME B660M-K D4

MarcaAsus
Modelo90MB1950-M1EAY0
Plataforma- mATX (24.4 cm x 21.1 cm)
Chipset- Intel® Z690 Chipset
CPU
Soportados- Admite procesadores Intel® Core?, Pentium Gold y Celeron de 12ª generación
- Zócalo del procesador LGA1700
Memoria- 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/
3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
Slots Expansión
- 1 x PCIe 4.0/3.0 同 slot
- 2 x PCIe 3.0 ࡧ slots
Gráficos- 1 x D-Sub
- 1 x HDMI
Puertos E/S,
Conectores

Conectores Internos E/S
- 1 × 4-pin CPU Fan header
- 1 × 4-pin Chassis Fan header
- 1 × 24-pin Main Power
- 1 × 8-pin +12V Power
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0 headers
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 × 10-1 pin System Panel header

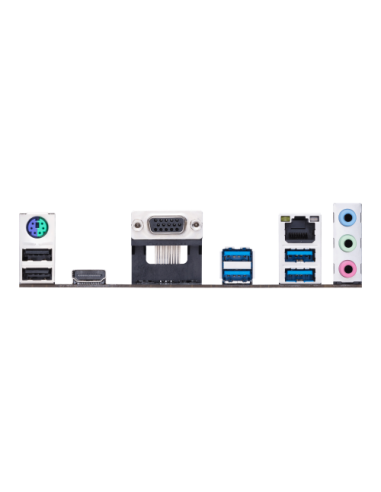

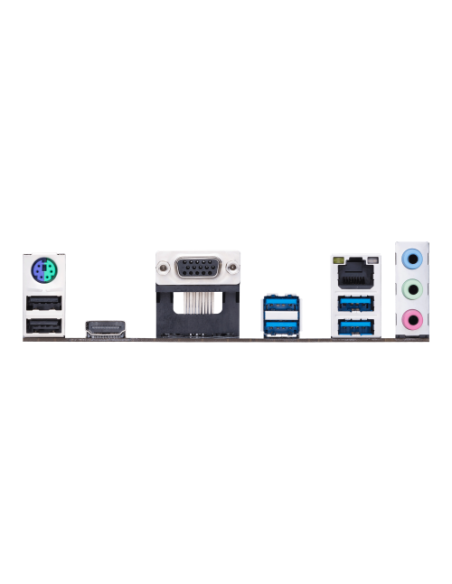

Panel E/S Trasero
- 4 x USB 3.2 Gen 1 (4 x Type-A)
- 2 x USB 2.0 (2 x Type-A)
- 1 x D-Sub
- 1 x HDMI®
- 1 x Realtek 1Gb Ethernet
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo
Otras
Características
Almacenamiento
- 2 x M.2 slots
- 4 x SATA 6Gb/s
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
LAN
- 1 x Realtek 1Gb Ethernet
USB
- 4 x USB 3.2 Gen 1 (4 x Type-A)
- 2 x USB 2.0 (2 x Type-A?
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0 headers
Sistema Operativo
- Windows® 11 64-bit, Windows® 10 64-bit
