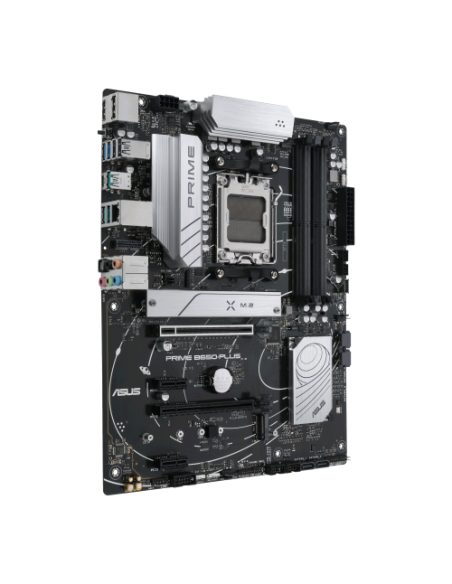

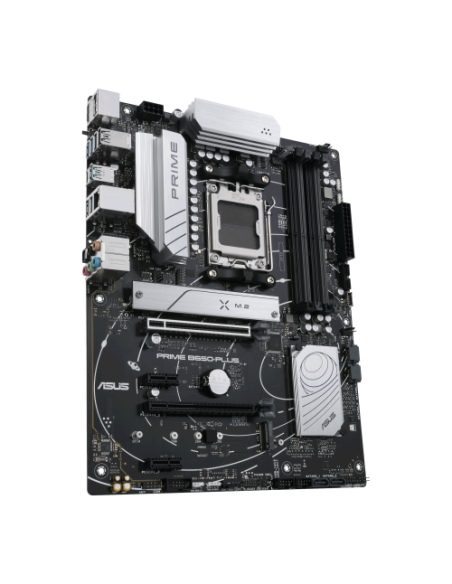

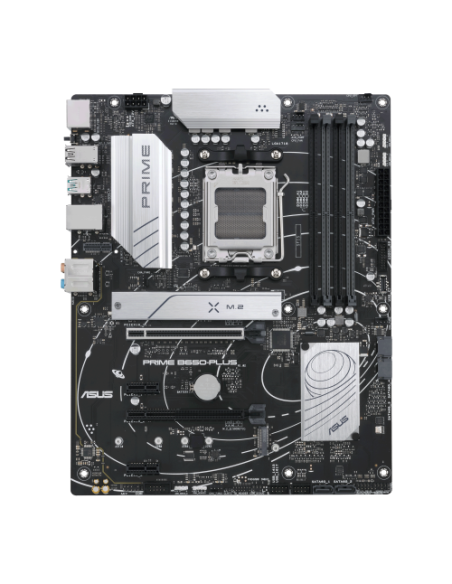

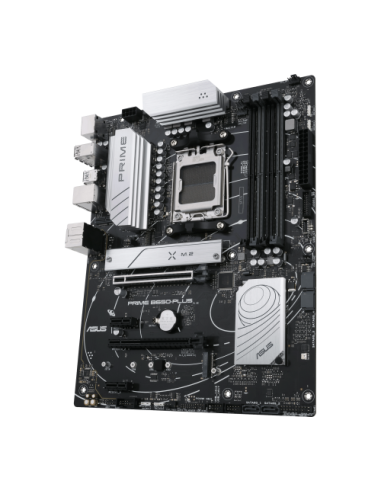

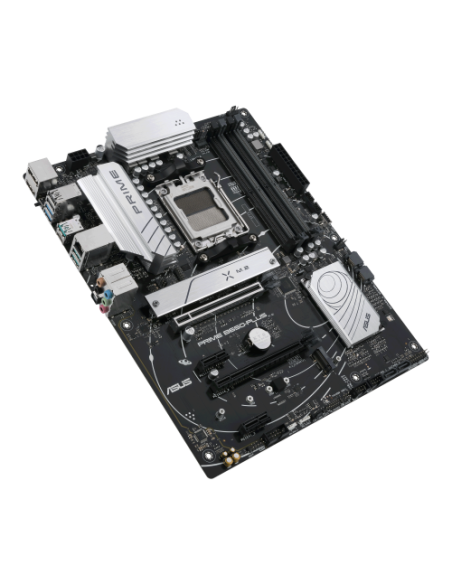

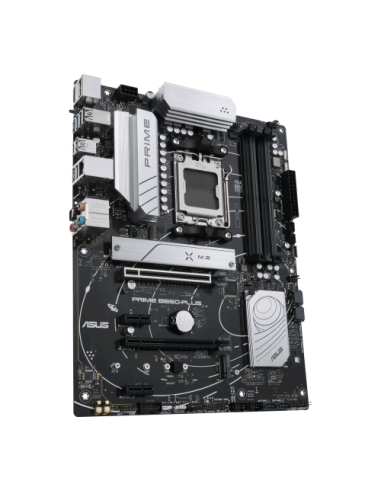

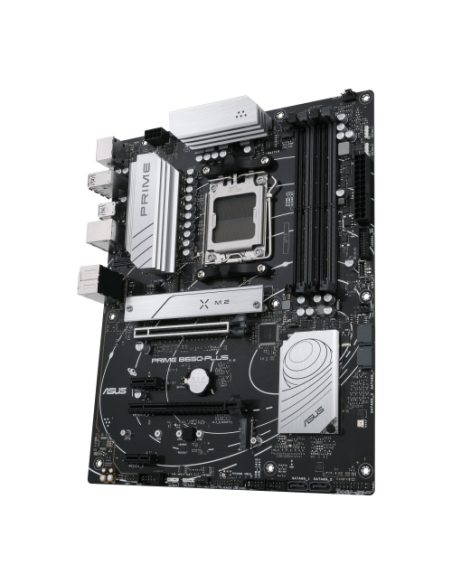

PLACA BASE AM5 ASUS PRIME B650-PLUS ATX- USB3.2- HDMI-

MarcaAsus
Modelo90MB1BS0-M0EAY0
Plataforma- ATX (30.5 cm x 24.4 cm)
Chipset- AMD
CPU
Soportados- Zócalo del procesador: Zócalo AM5
- Zócalos de procesador compatibles: Zócalo AM5
- Procesadores compatibles: AMD Ryzen? 3, AMD Ryzen? 7, AMD Ryzen 9 7th Gen
Memoria- 4 x DIMM, Max. 128GB, DDR5-SDRAM
- Admite: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
- Dual Channel
- ECC y Non-ECC
- Unbuffered memory
Slots Expansión
- 2 x PCI Express x4 (Gen 1.x)
- 2 x PCI Express x16 (Gen 4.x)
- 2 x Number of M.2 (M)
Puertos E/S,
Conectores

Conectores Internos E/S
- 2 x USB 2.0
- 2 x USB 3.2 Gen 1 (3.1 Gen 1)
- 4 x Number of SATA III
- 3 x Number of chassis fan
- 1 x Number of COM
- 1 x Thunderbolt headers
- Front panel audio
- ATX Power (24-pin)
- CPU fan
- EPS power (8-pin)
- TPM
- 12V power
- RGB LED pin header

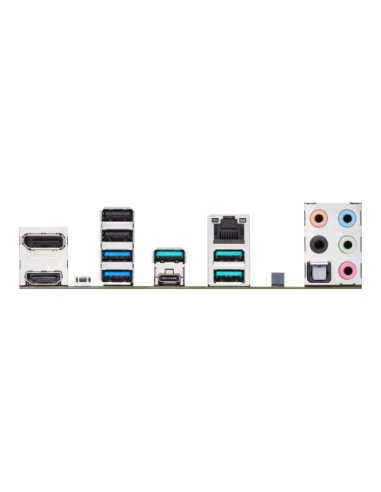

Panel E/S Trasero
- 2 x USB 2.0
- 2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- 3 x USB 3.2 Gen 2 (3.1 Gen 2) Type-A
- 1 x USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- 1 x Ethernet LAN (RJ-45)
- 1 x HDMI 2.1
- 1 x DisplayPort 1.4
- 1 x Headphone outputs
- Line-in
- Microphone in
- S/PDIF out port
Otras
Características
Almacenamiento
- Tipos de unidades de almacenamiento compatibles: HDD y SSD
- Interfaces de unidades de almacenamiento compatibles: M.2, SATA III
- Niveles RAID: 0, 1, 10
Audio
- Realtek 7.1 AMD B650
LAN
- 2.5 Gigabit Ethernet
Sistema Operativo
- Windows 10, Windows 11 吼
